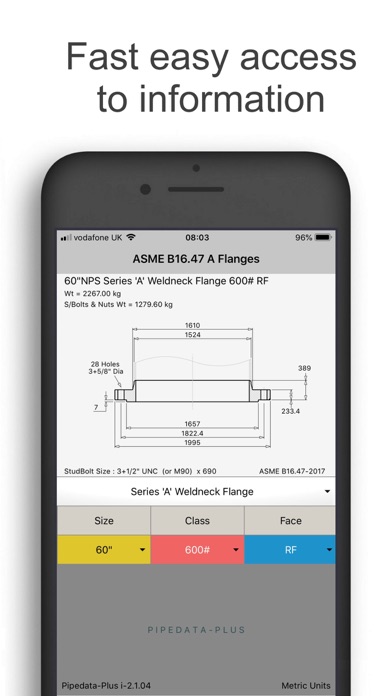

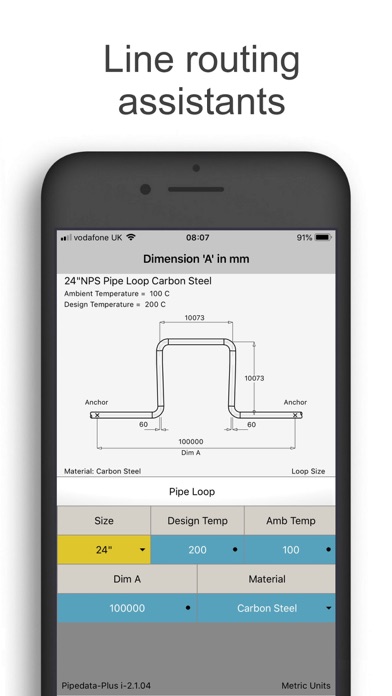

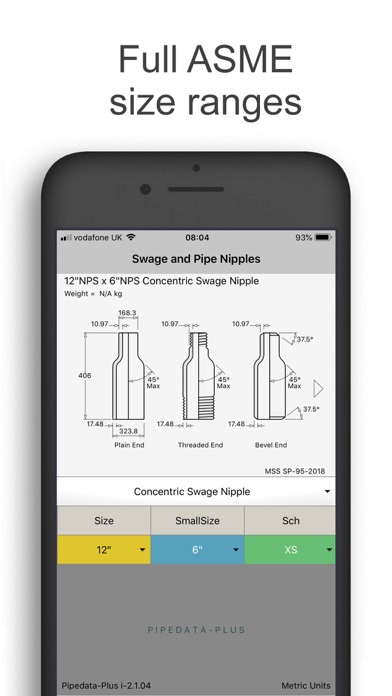

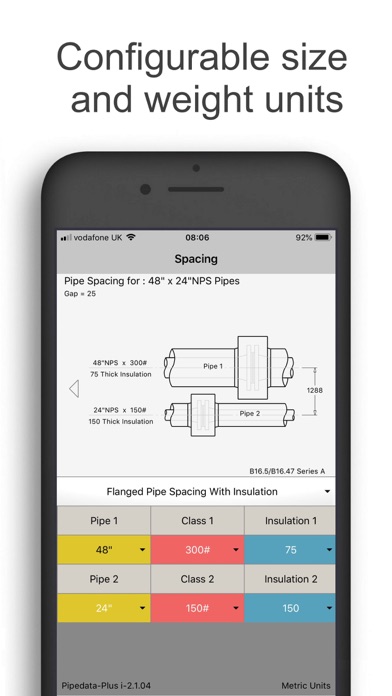

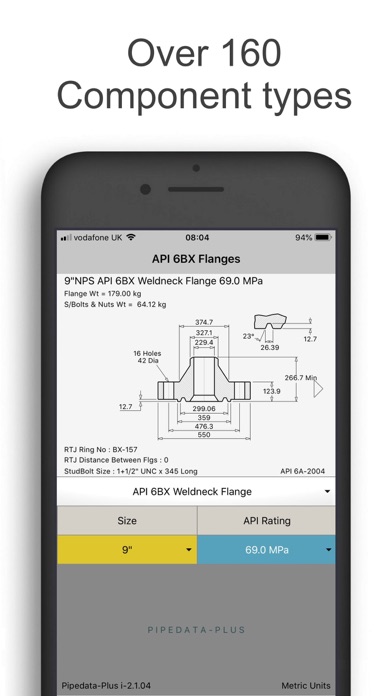

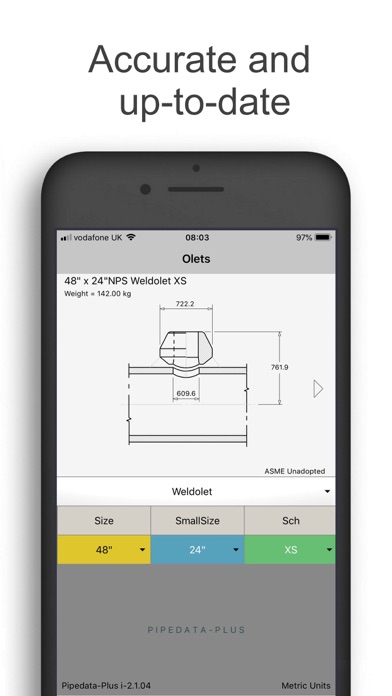

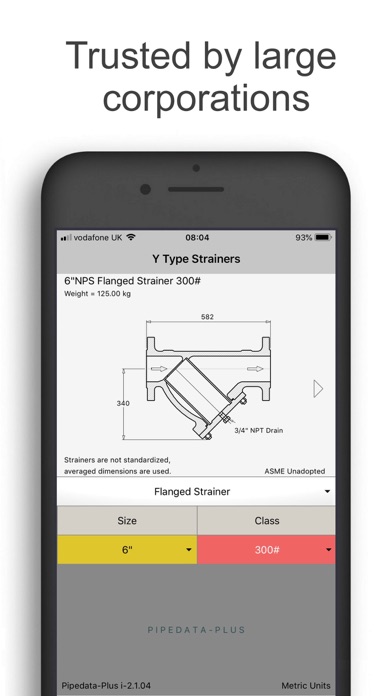

Pipedata-Plus has dimensional and weight information for over 160 common piping components with the addition of specialities such as strainers, weldoflanges etc. Pipedata-Plus also includes design aids, safe spans, pipe flexibility, spacing and more. The interface is enhanced with colour coded components and parameters. Based on the latest ASME piping dimensional specifications it shows Metric, U.S. Customary Units and Inch Fractions, NPS and DN pipe sizes and includes audited valve weights, flange and pipe weights and all piping component weights. DATA SUMMARY Pipedata-Plus Provides Piping Dimensions and Weights Flange Dimensions and Weights Valve Dimensions and Weights Piping Fittings Dimensions and Weights for the following components: FLANGES ASME B16.5 Flanges WeldNeck Flange Slip On Flange Blind Flange Threaded Flange SocketWelded FlangeLapped Flange Long Welding Neck Flange ASME B16.47 Series A Flanges WeldNeck Flange Blind Flange ASME B16.47 Series B Flanges WeldNeck Flange Blind Flange Orifice Flanges ASME B16.36 WeldNeck Slip On Threaded API-6A Flanges API Type 6B Weldneck Threaded Flange Blind API Type 6BX WeldNeck Blind and Test Flange Reducing Flanges AMSE B16.5 Threaded Slip-On ASME Compact Flanges Standard Swivel Blind Hub and Clamp Hub-Clamp Pipe Connector Din Flanges EN1092-1:2013 Blind Flange Threaded Flange Flat Flange Weldneck Flange Lapped Flange BS 10 Flanges TABLES A,D,E,F,H,J,K.R & S PIPE FITTINGS ASME B16.9 Butt Welded Pipe Fittings ASME B16.11 Threaded Pipe Fittings ASME B16.11 Socket Welded Pipe Fittings VALVES ASME B16.10 Flanged Valves Gate Valve Globe Valve Ball Valve Control Valve (for layout) Swing Check Wafer Check Wafer type Butterfly Lug type Butterfly Buttwelded Valves Gate Globe Ball Valve Check Threaded Valves Gate Globe Horizontal Check Vertical Check Socketwelded Valves Gate Globe Horizontal Check Vertical Check BLINDS AND SPACERS ASME B16.48 Spectacle Blind Line Spade and Spacer RTJ Male Type Reversible Spade RTJ Male Type Line Spade WELDED BRANCHES Olets ButtWelded Threaded SocketWelded Weldoflange Elbowflange Latroflange Nipoflange Pipets ButtWelded Threaded SocketWelded Flanged GASKETS None Metallic Flat Ring for ASME B16.5 Flanges None Metallic Flat Ring for ASME B16.47 Series A Flanges None Metallic Flat Ring for ASME B16.47 Series B Flanges Spiral wound for ASME B16.5 Flanges Spiral wound for ASME B16.47 Series A Flanges Spiral wound for ASME B16.47 Series B Flanges RTJ soft iron ring type R - ASME B16.21 RTJ soft iron ring type RX - ASME B16.21 RTJ soft iron ring type BX - ASME B16.21 PIPE ASME B16.10M/19M Pipe By Schedule Pipe By Wall Thickness NUTS ISO Nuts UNC Nuts DESIGN AIDS ASME Composite Dimensions Pipe Flexibility Pipe Leg Pipe Loop Safe spans Safe rack spans Safe Pipe Spacing Safe Pipe Spacing with Insulation Safe Flanged Pipe Spacing Safe Flanged Pipe Spacing With Insulation
